BiRotor Plus Meter

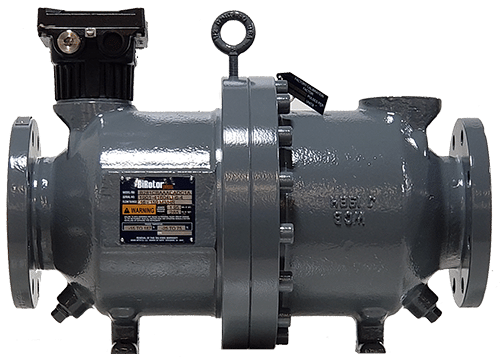

The Brodie BiRotor Plus positive displacement meter is designed for accurate measurement of petroleum liquids in a variety of applications. The double case design combines the rugged durability and long service life of the traditional BiRotor meter with the improved accuracy and reliable pulse output demanded by today’s industry requirements.
A Series
B Series
C Series
D Series
E Series
F Series
| Model Code | SB25x |
| Connections | 2″ |
| Std Flow Range | 15 – 150 GPM 56-568 LPM |
| Pressure Ratings | 150# ANSI 300# ANSI |
| Max Pressure | 285 PSIG 740 PSIG |
| Linearity | +/-0.15% |
| Repeatability | 0.02% |
| Model Code | B27x |
| Connections | 3″ |
| Std Flow Range | 43 – 425 GPM 163-1609 LPM |
| Pressure Ratings | ANSI 150 ANSI 300 |
| Linearity | +/-0.10% |
| Repeatability | 0.02% |
| Model Code | B28x | Model Code | B29x |
| Connections | 4″ | Connections | 6″ |
| Std Flow Range | 70 – 700 GPM 265-2650 LPM |
Std Flow Range | 100 – 1000 GPM 379-3785 LPM |
| Pressure Ratings | ANSI 150 ANSI 300 ANSI 600 |
Pressure Ratings | ANSI 150 ANSI 300 ANSI 600 |
| Linearity | +/-0.075% | Linearity | +/-0.075% |
| Repeatability | 0.02% | Repeatability | 0.02% |
| Model Code | B30x | Model Code | B31x | Model Code | B32x |
| Connections | 6″ | Connections | 8″ | Connections | 10″ |
| Std Flow Range | 252 – 2497 BPH 40-397 M3/HR |
Std Flow Range | 402-4025 BPH 64-640 M3/HR |
Std Flow Range | 402-4025 BPH 64-640 M3/HR |
| Pressure Ratings | ANSI 150 ANSI 300 |
Pressure Ratings | ANSI 150 ANSI 300 |
Pressure Ratings | ANSI 150 ANSI 300 |
| Linearity | +/-0.15% | Linearity | +/-0.15% | Linearity | +/-0.15% |
| Repeatability | 0.02% | Repeatability | 0.02% | Repeatability | 0.02% |
| Model Code | B33x | Model Code | B34x |
| Connections | 10″ | Connections | 12″ |
| Std Flow Range | 500-5000 BPH 79-795 M3/HR |
Std Flow Range | 786-7865 BPH 125 – 1250 M3/HR |
| Pressure Ratings | ANSI 150 ANSI 300 ANSI 600 |
Pressure Ratings | ANSI 150 ANSI 300 ANSI 600 |
| Linearity | +/-0.15% | Linearity | +/-0.15% |
| Repeatability | 0.02% | Repeatability | 0.02% |
| Model Code | B38x |
| Connections | 16″ |
| Std Flow Range | 1,300-13,000 BPH 207-2066 M3/HR |
| Pressure Ratings | ANSI 150 ANSI 300 ANSI 600 |
| Linearity | +/-0.15% |
| Repeatability | 0.02% |
Technical Highlights
Performance
Viscosity
Life Cycle

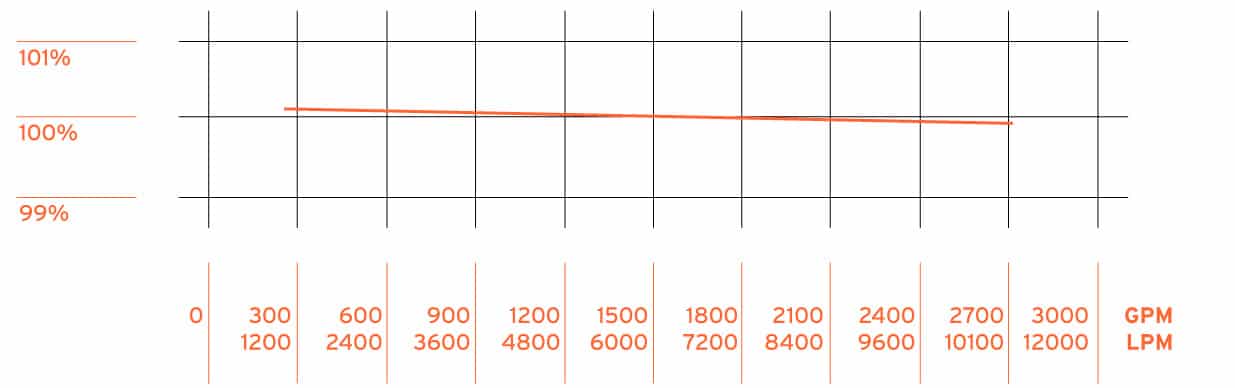

Typical curve for the BiRotor Plus B311.
A Series Viscosity: The Brodie BiRotor Plus single case positive displacement meter is designed for superior measurement of petroleum liquids in a variety of applications from Biofuel blending in marketing terminals to upstream production allocation.
B-F Series Viscosity: The advanced design of the BiRotor Plus allows the meter to be utilized in applications where viscosities range from 0.2 – 1000 cSt.
Brodie’s premier product and its unique twin helical rotor design allows the meter to “chew through paraffin™” in high waxy Crude Oil application where other metering technologies have failed to produce long-term stability.

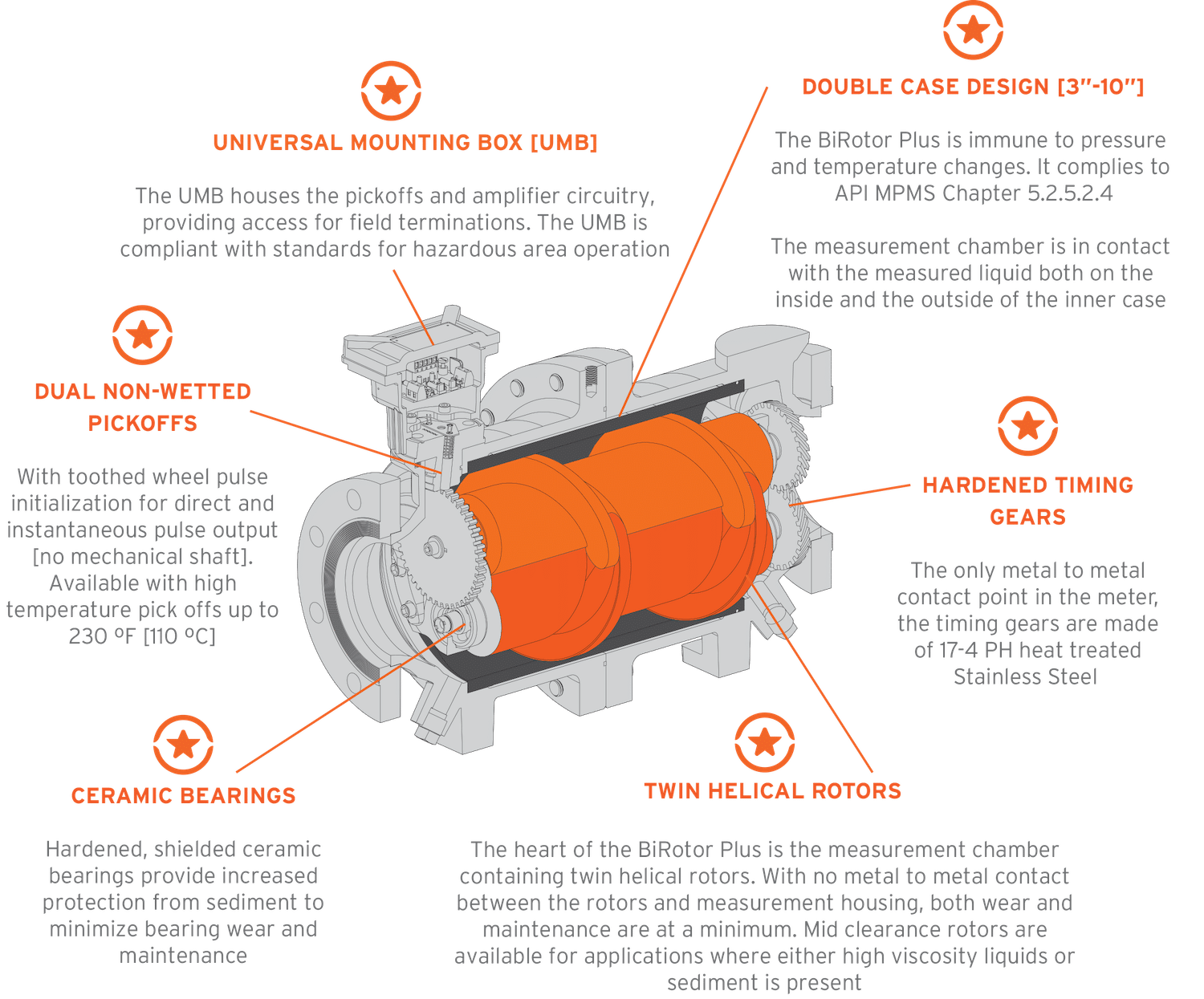

NO METAL TO METAL CONTACT
Timing gears, manufactured from hardened tungsten steel, are the only contacting components within the BiRotor Plus. The measurement chamber and twin helical rotors are machined to include precision tolerances and have no metal to metal contact. Engineered to provide extended durability, the BiRotor Plus optimizes your operation providing unsurpassed performance, with virtually no maintenance.
MEASUREMENT STABILITY
Incorporating an electronic output, utilizing a pulse wheel and pick off coils. With no rotating output shaft, the BiRotor Plus offers meter factor stability, whilst reducing exposure to environmental challenges.
