Vane Meter

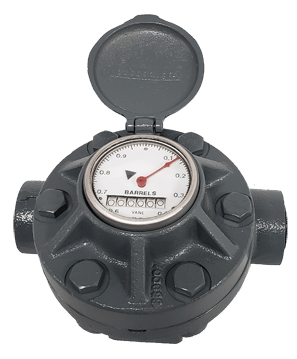

The Brodie Vane meter designed for oilfield waterflood applications is compact and reliable with only one moving part.
The corrosion resistant materials of the case and internal construction were selected specifically for secondary recovery water service, or oil service.
The register is a hermetically sealed unit with magnetic drive which protects against moisture and dirt. No output shaft, no wetted gear train and consistent accuracy help make this meter one of the most reliable unit in its field.
Downloads Data Sheets
Technical Specifications

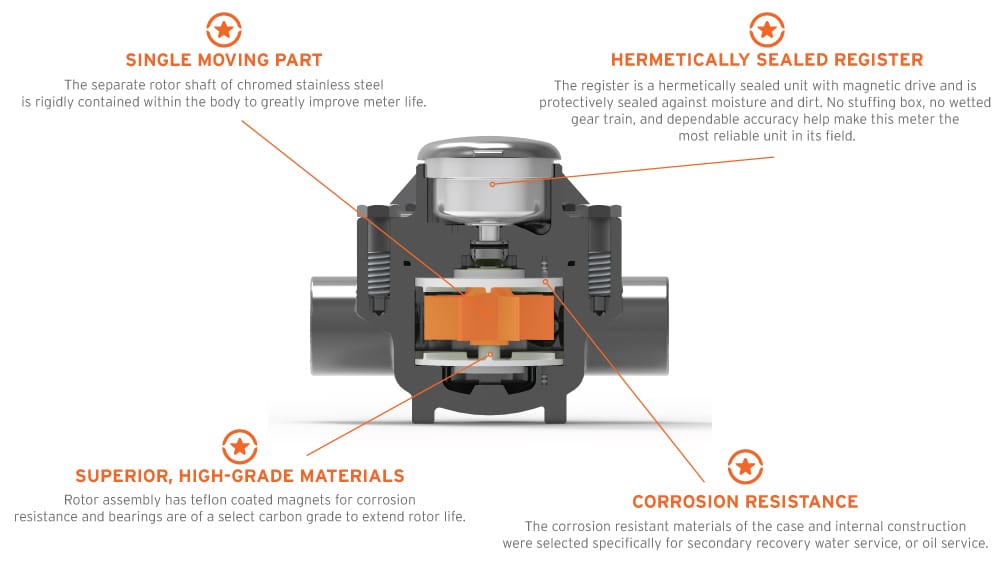

Technical Highlights
| Model | SIZE | ACCURACY | WORKING PRESSURE |
CAPACITY | CONNECTION | SEALED REGISTER |
|---|---|---|---|---|---|---|
| 792 (Waterflood) | 1” | +/-2.5% | 5000 PSI | 2.9 – 29 BPH 0.45 to 4.5 M3/H |
Female NPT | Barrels and M3 |
| 793-A(Waterflood) | 1″ | +/-2.5% | 5000 PSI | 7.5- 75 BPH 1.1- 11.9 M3/H |
Female NPT | Barrels and M3 |
